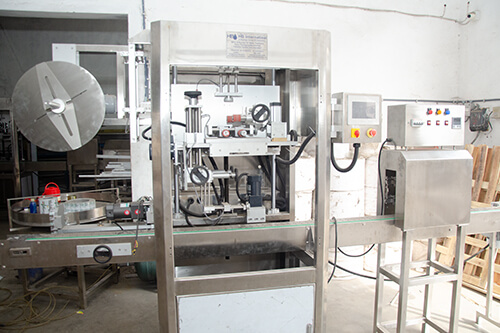

Cap Sleeve Applicator Machine
Shrink Sleeve Applicator Machine - HBI/200/300 is design to insert sleeve with desired position of various size and shape of containers. This unique model is suitable for variety of industries with an opportunity to reduce labour and increase manufacturing rates.
The machine having integrating functions of delivering & classifying containers, accurate cutting of label sleeving and proper positioning of sleeve on bottle.
HBI - 100/200/300 is constructed on sturdy welded steel frame completely enclose in S. S. Sheet doors and aluminium alloy.
The unit consisting of Sleeve roll loader—carrier assembly, Conveyor bottle separating assembly, Centre pillar, Bottle positioning mechanism, Cutter mechanism, Optical scanner, Controlling assembly and Brush assembly etc
This Shrink Sleeve Applicator Machine model operates with great simplicity, high efficiency and minimal maintenance with production capacity up to300BPM.
Salient Features: Shrink Sleeve Applicator
- Rigid Structure constructed S. S. and anodizing aluminium alloy.
- Fully automatic machine with speed up to 300 BPM.
- No bottle no sleeve.
- Statics charges elimination system for accurate sleeve placements
- Totally PLC control system.
- No tools required for changeovers from one size bottle to another.
- Servo based high speed with accurate length sleeve feeding and rotary sleeve cutter systems
- Online speed can vary 8: fully synchronized with all mechanism.
- Suitable for various shape of Glass, Plastic, Pet, Tin, Corrugated containers.
Optional Features: Shrink Sleeve Applicator
- Sleeve Label Roll Empty : Machine stop with Alarm.
- Missing sleeve label : Machine stop with alarm or online pneumatic operated product rejection system.
- Tower light: Indicate the status of process.
| Model | HBI - 100/200/300 |
|---|---|
| Output/Min.* | Up to 300 |
| Container Size | Φ 28mm – Φ 125mm, 320mm Height Max. |
| Length of Sleeve | 30mm – 250mm |
| Thickness of Sleeve | 0.035mm – 0.75mm |
| Label Material | PVC, PET, OPS, PLA |
| Sleeve Roll Inner Dia. | ≥ 4�? (101.6mm) |
| Sleeve Roll Outer Dia. | 400mm |
| Height of Conveyor** | 860-910 mm |
| Electrical Rating | 1.5KW-2KW, 380V AC, 50/60HZ, 3-Phase |
| Change Parts** | (A) Centre Pillar (B) Worm (C) Cutter |
- Depends on container and sleeve label size.
- Can be supplied as per customer requirements.
- Specification can be altered as per customer specific requirement.
