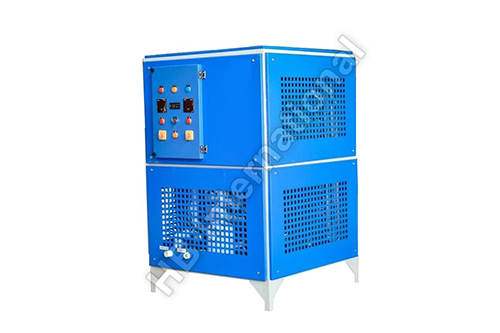

Chiller
We Are Manufchure Online Water Chilller Capacity is 2 ton-25 ton
Features
- Copper Refrigeration pipe
- Danfoss Refrigeration liquid dryer
- Danfoss /Emrson Expansion Valve
- Digital Temperature Controller
- RTD(PT-100) Sensor probe
- PUF Insulation of Chiller
- SS Structure frame work
- Exhaust Fan
| Technical Detail | STon |
|---|---|
| Cooling Cap./hr | 600 to 750 ltr per hour |
| Outlet. Temp | 100C to 150 (± 2) |
| Energy Consup. | 6100 W |
| Power Supply | 360-460 Volt – 3 PH |
| Max.Current Amp. | 11 Amps |
| Ton capacity | 5 Ton |
| Pump | 1 HP |
| PHE | GEA Make |
| Body | MS Powder Coted |
| Compressor | Emerson Hermatic |
| Condenssor | Air cooled Fince type |
| Expansion Valve | Danfoss/Emrson |
| Fan | Exhaust (Axial) |
| Temp.Control | Digital |
| Sensor Probe | RTD (PT-100) |
| Insulation | PUF |
| Refrigerant | R-22 |
