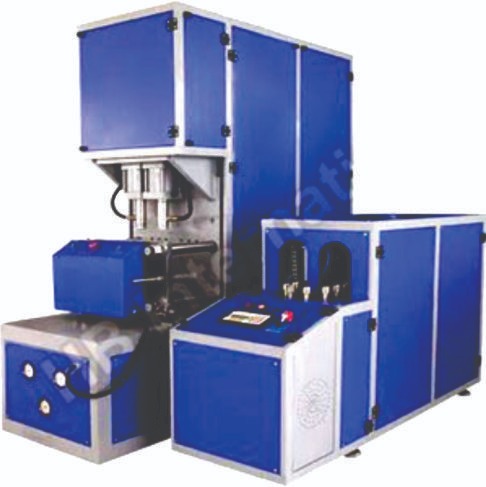

Blow Moulding machine

The Semi Automatic Blowing Machine is designed for manufacturing PET bottles in a variety of shapes and sizes. Its key advantage lies in its flexibility, allowing production of containers ranging from 200 ml to 2000 ml on a single machine. Built for efficiency and ease of operation, it ensures consistent quality, reliable performance, and adaptability for diverse production requirements.

BLOW MOLDING MACHINE – Key Features

Fast Machines with output rates up to 1600 BPH thus optimizing productivity and production cost
Precise heat control due to layered heating system
Reduced electrical consumption: reflectors are close to the preform in the oven
Preform Feeder Reliability: speed regulation loop from the elevating column to the orientation
Parts changed less frequently : parts are more robust, with optimized service life
OMRON PLC with touch screen keypad

Machine Specification

TYPE	ITEM	UNIT	UWS 1000
CONTAINER	Product Material		PET
	Container Volume	ML	200 ml – 2000 ml
	Theoretical Output	BPH	800 – 1000
	Max. Bottle Height	MM	340
	Max. Bottle Diameter	MM	100
	Max. Mould Plate Dimension (L x W)	MM	380 x 500
MOULDING	Max Thickness of mould	MM	300
	Clamping force	KN	30
	Mould opening stroke	MM	230
Air Compressor	Air Compressor	HP	20
Air Compressor	Air Pressure for blowing	Mpa	2.0 – 3.0
Main Machine Electricity	Power	KW	3
Main Machine Electricity	Voltage / frequency	V / HZ / PH	380 V x 50 Hz x 3 PH
Machine Size And Weight	Main machine (L x W x H)	M	1.48 x 0.68 x 2.13
	Main machine weight	T	0.8
	Preform Oven (L x W x H)	M	1.37 x 0.61 x 1.34
	Preform Oven weight	T	0.22
	High pressure compressor (L x W x H)	M	1.90 x 0.75 x 1.50
	Air filters	µF	0.1µ x 2 Pcs.
