BLOW MOLDING MACHINE

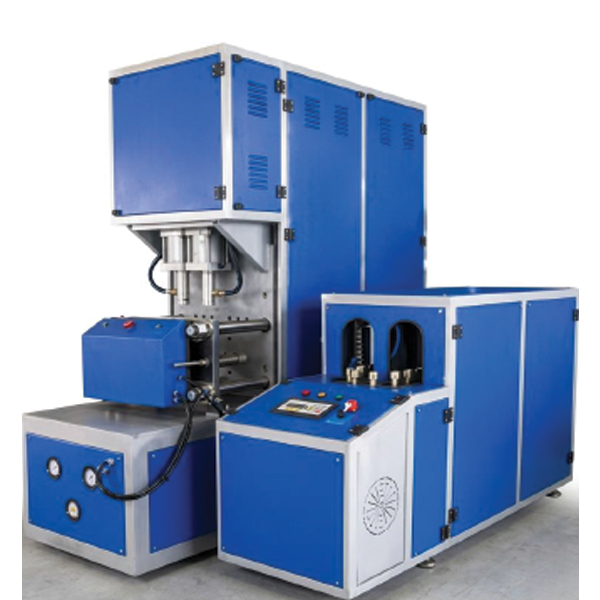

The Semi Automatic Blowing Machine is designed for manufacturing PET bottles in a variety of shapes and sizes. Its key advantage lies in its flexibility, allowing production of containers ranging from 200 ml to 2000 ml on a single machine. Built for efficiency and ease of operation, it ensures consistent quality, reliable performance, and adaptability for diverse production requirements.
BLOW MOLDING MACHINE – Key Features
- Fast Machines with output rates up to 1600 BPH thus optimizing productivity and production cost
- Precise heat control due to layered heating system
- Reduced electrical consumption: reflectors are close to the preform in the oven
- Preform Feeder Reliability: speed regulation loop from the elevating column to the orientation
- Parts changed less frequently : parts are more robust, with optimized service life
- OMRON PLC with touch screen keypad
| TYPE | ITEM | UNIT | UWS 1000 |
|---|---|---|---|
| CONTAINER | Product Material | PET | |
| Container Volume | ML | 200 ml – 2000 ml | |
| Theoretical Output | BPH | 800 – 1000 | |
| Max. Bottle Height | MM | 340 | |
| Max. Bottle Diameter | MM | 100 | |
| Max. Mould Plate Dimension (L x W) | MM | 380 x 500 | |
| MOULDING | Max Thickness of mould | MM | 300 |
| Clamping force | KN | 30 | |
| Mould opening stroke | MM | 230 | |
| Air Compressor | Air Compressor | HP | 20 |
| Air Pressure for blowing | Mpa | 2.0 – 3.0 | |
| Main Machine Electricity | Power | KW | 3 |
| Voltage / frequency | V / HZ / PH | 380 V x 50 Hz x 3 PH | |
| Machine Size And Weight | Main machine (L x W x H) | M | 1.48 x 0.68 x 2.13 |
| Main machine weight | T | 0.8 | |
| Preform Oven (L x W x H) | M | 1.37 x 0.61 x 1.34 | |
| Preform Oven weight | T | 0.22 | |
| High pressure compressor (L x W x H) | M | 1.90 x 0.75 x 1.50 | |
| Air filters | µF | 0.1µ x 2 Pcs. |
