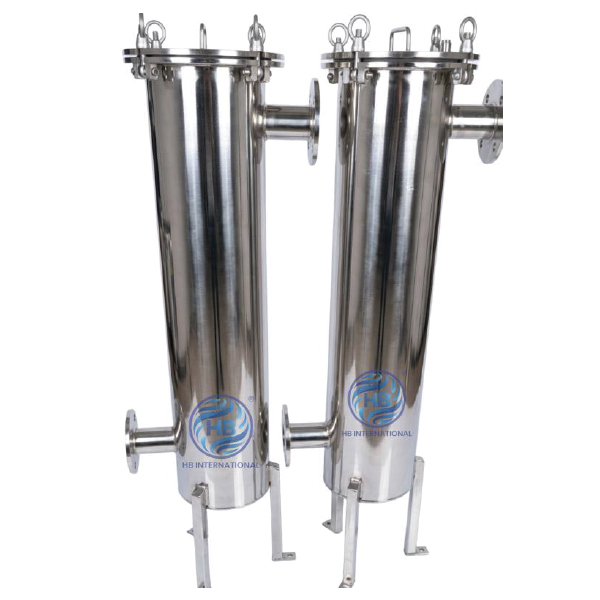

S.S Bag Filter houshing
Bag Filter System is designed to provide efficient and reliable filtration performance across a wide range of industrial fluid applications. It offers an effective solution for removing suspended particles and impurities from liquids, making it suitable for various process industries. The system is particularly useful for filtering large volumes of high-viscosity liquids, ensuring consistent flow and improved product quality.
A typical bag filter unit consists of a durable filter housing, replaceable filter bags, an internal support cage, a positive sealing arrangement, and various end connection options for easy integration into process lines. The internal support cage strengthens the filter bag and prevents bursting even when high differential pressure develops during operation. This design ensures safe operation, longer filter life, and dependable filtration efficiency in demanding industrial environments.
Alkaline Water Plant – Key Features
- High flow rates
- Low pressure drop
- High dirt holding capacity
- Positive sealing arrangement to avoid bypassing
- Suitable for PP Collar, Rigid Ring & Snap Band Bags
- Quick opening Tri-Clovers & Fly-nut design
- Easy to operate & low maintenance
- Low downtime
- Flow rate up to 2000 m³/hr & more
- Customized design available
- Large-area, heavy-duty baskets
- Housings are permanently piped
- Covers are O-ring sealed
Technical Specification
Bag filter system suitable for
- Ø 4″ x 10″ Long Filter Bag
- Ø 4″ x 17″ Long Filter Bag
- Ø 7″ x 17″ Long Filter Bag
- Ø 7″ x 32″ Long Filter Bag
Multiple bag filter system suitable for
- 2 Nos. of Ø 7” x 32” Long Filter Bag
- 3 Nos. of Ø 7” x 32” Long Filter Bag
- 4 Nos. of Ø 7” x 32” Long Filter Bag
- 5 Nos. of Ø 7” x 32” Long Filter Bag
- 6 Nos. of Ø 7” x 32” Long Filter Bag
- 7 Nos. of Ø 7” x 32” Long Filter Bag
- 8 Nos. of Ø 7” x 32” Long Filter Bag
- 9 Nos. of Ø 7” x 32” Long Filter Bag
Flow Rate
- Capacity: Up to 2000 m³/hr
Gasket / O-Ring Material
- Neoprene
- Nitrile
- Silicone
- Viton
- Buna N
- EPDM
- PTFE
Material of Construction
- SS 316L
- SS 316
- SS 304
- Super Duplex / Duplex Stainless Steel
- Carbon Steel (All Grades)
- Mild Steel
- Alloy Metals
- Polypropylene
- Lead Lining on Any Metal
- Rubber Lining on Any Metal
- PTFE Lining on Any Metal
Bag Filter Suitable For
- PP Collar Bag
- Rubber Collar Bag
- Snap Band Bag
- Rigid Ring Bag
- Flange Collar Bag
End Connections Available
- NPT / BSP Threaded
- Flanged Table E / Table F
- ANSI B 16.5 Flanged
- DIN Standard
- Tri Clover Adaptors
- SMS / Dairy End Connection
Applications
| FCI Code | Description | Style | Material | Size | Design |
|---|---|---|---|---|---|
| FCIMBG–S1–M–732–2–D | SBG – Single Bag Filter Housing | S1 – Style –1 | A – SS 304 | 7" x 32" x 2 Nos | Duplex |
| MBG – Multiple Bag Filter Housing | S2 – Style –2 | B – SS 316 | 7" x 32" x 3 Nos | Simplex | |
| S3 – Style –3 | C – SS 316L | 7" x 32" x 4 Nos | |||
| D – CARBON STEEL | 7" x 32" x 5 Nos | ||||
| E – CSRL | 7" x 32" x 6 Nos | ||||
| F – ASTM A 106 | 7" x 32" x 7 Nos | ||||
| G – ASTM A 517 | 7" x 32" x 8 Nos | ||||
| H – ASTM A 516 |
