Packaged Drinking Water Plant by HB International
HB International offers complete turnkey Packaged Drinking Water Plant solutions designed to meet BIS (ISI) standards for purity, quality, and safety. We specialize in manufacturing and installing end-to-end mineral water plants, including RO systems, SS storage tanks, ozone systems, UV sterilizers, bottle filling machines, blow moulding machines, shrink wrapping machines, and lab setup equipment.
Our plants are engineered for high efficiency, low maintenance, and long-term durability, making them ideal for new startups as well as large-scale water bottling companies.
Key Features
- BIS-compliant water purification process
- Fully automatic & semi-automatic plant designs
- RO + UV + Ozone integrated purification
- Complete machinery supply, installation, and training
- Available in 500 LPH to 50,000 LPH capacities
- Custom layout & plant design support
Applications
- Mineral water plant setup
- Packaged drinking water bottling business
- Industrial & commercial water purification
Technical Overview
A Packaged Drinking Water Plant is an integrated water purification and bottling system designed to produce BIS-compliant drinking water. The plant uses multi-stage filtration, reverse osmosis (RO), UV sterilization, and ozone disinfection to remove impurities and ensure safe, hygienic water. The purified water is stored in food-grade stainless steel (SS) tanks and packed through automatic bottle rinsing, filling, and capping systems, ensuring consistent quality and efficient production.
Technical Components
| S.No | Component | Description |
|---|---|---|
| 1 | Raw Water Feed Pump | Multistage centrifugal pump for consistent water supply |
| 2 | Sand Media Filter (MS/FRP/SS) | 20–40 micron particle reduction |
| 3 | Activated Carbon Filter | Removal of chlorine, color, odor, organics |
| 4 | Micron Cartridge Filters (10µ, 5µ, 1µ) | Fine filtration before RO |
| 5 | Reverse Osmosis System |
|
| 6 | High Pressure Pump (SS304) | Stainless steel high-pressure pump |
| 7 | UV Disinfection System | Stainless steel UV chamber (SS304/316) |
| 8 | Ozonator Unit (1–5 g/hr) | With SS Contact Tank |
| 9 | SS Storage Tank (SS304/316) | Hygienic water holding |

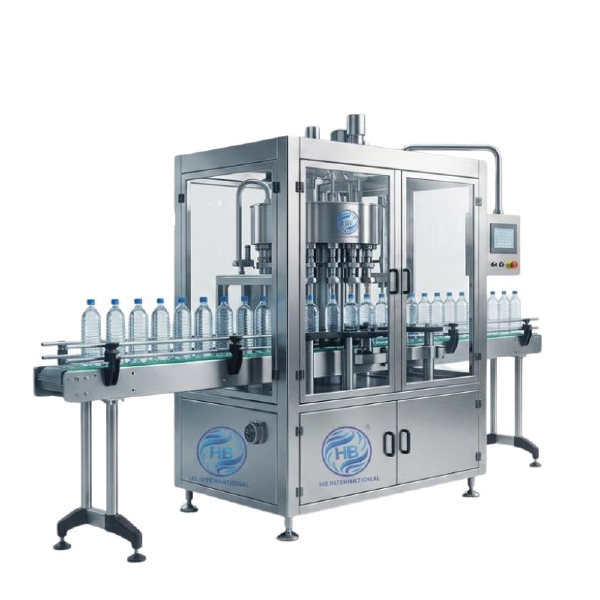

| 10 | Automatic Bottle Rinsing–Filling–Capping Machine (RFC) | Automatic bottle rinsing, filling and capping |
| 11 | Labeling Machine / Cap Feeder | Automatic labeling and cap feeding |
| 12 | Shrink Wrapping Machine | Automatic bottle pack shrink wrapping |
Technical Specifications
- Capacity: 500 LPH to 50,000 LPH
- Power Consumption: 3 kW – 35 kW
- Material: SS304 / SS316
- Filtration Stages: 6–12 stages
- Bottle Sizes: 200 ml – 20 Liter Jar
- Automation Level: Semi / Fully Automatic
